Chapter 9

import sympy as sp
from sympy import symbols, sqrt, init_printing
from sympy_equation import Eqn, solve, table_of_expressions
from ambiance import Atmosphere
import numpy as np
import pint
import pygasflow
from pygasflow import *
from pygasflow.atd import *
init_printing()
pygasflow.defaults.solver_to_dict = True

ureg = pint.UnitRegistry()
# use "~P" to format units with unicode
ureg.formatter.default_format = "~"
pygasflow.defaults.pint_ureg = ureg
K = ureg.K
m = ureg.m
cm = ureg.cm
km = ureg.km
s = ureg.s
J = ureg.J
W = ureg.W
kg = ureg.kg
deg = ureg.deg
atm = ureg.atm
N = ureg.N
Q_ = ureg.Quantity

P 9.1

c_p0 = 1.8275
M_inf = 8.03

(a)

c_ps = pressure_coefficient(M_inf, stagnation=True)
c_ps

$\displaystyle 1.82744352286846$

(b)

c_ps = pressure_coefficient(M_inf * 1e06, stagnation=True)
c_ps

$\displaystyle 1.83937105113066$

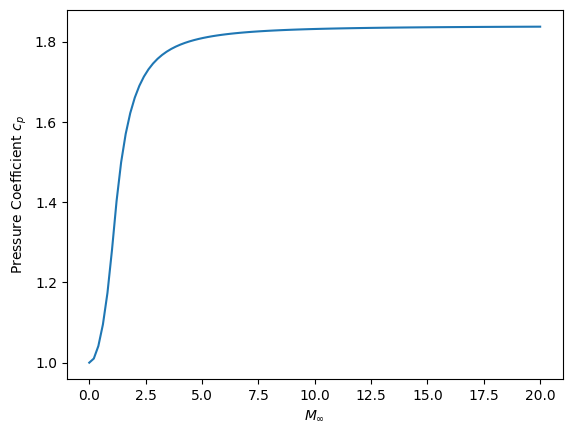

import matplotlib.pyplot as plt

M_infs = np.linspace(1e-05, 20, 100)
fig, ax = plt.subplots()
ax.plot(M_infs, pressure_coefficient(M_infs, stagnation=True))
ax.set_xlabel(r"$M_{\infty}$")
ax.set_ylabel("Pressure Coefficient $c_{p}$")
plt.show()

P 9.2

c_ps = 1.8392
gamma = 1.4

(a)

M_inf = 6
# by inverting the definition of c_ps for supersonic case
# see source code of `pressure_coefficient`
pt2_p1 = c_ps / 2 * gamma * M_inf**2 + 1
pt2_p1

$\displaystyle 47.34784$

(b)

M_inf = 8.03
pt2_p1 = c_ps / 2 * gamma * M_inf**2 + 1
pt2_p1

$\displaystyle 84.015289896$

(c)

M_inf = 10
pt2_p1 = c_ps / 2 * gamma * M_inf**2 + 1
pt2_p1

$\displaystyle 129.744$

P 9.3

# Table 9.6
M_inf = 12.66
T_inf = 64.5 * K
Re_inf_u = 985.45 / cm
lambda_inf = 0.021 * cm
T_w = 285 * K
Lsfr = 6.676 * cm

x = 2
delta_y = 0.00817
y = 400 * delta_y

P 9.4

mu_argon = lambda T: T**0.75 * kg / (m * s)
x = 1

# Table 9.6
M_inf = 12.66
T_inf = 64.5 * K
Re_inf_u = 985.45 / cm
lambda_inf = 0.021 * cm
T_w = 285 * K
Lsfr = 6.676 * cm

C_inf = chapman_rubesin(T_w, T_inf, func=mu_argon)
C_inf

0.6897293607595334

Re_inf = Re_inf_u * x * Lsfr
Re_inf

6578.864200000001

Chi = interaction_parameter(M_inf, Re_inf, C_inf, laminar=True)
Chi

20.776147167529803

V = rarefaction_parameter(M_inf, Re_inf, C_inf)
V

0.1296276361937176

Assuming cold wall:

Chi_u = Chi * np.sqrt(x * Lsfr)
x_crit_cold = critical_distance(Chi_u, weak=False, cold_wall=True)
x_crit_cold

17.051384565460914 cm

Assuming hot wall:

x_crit_hot = critical_distance(Chi_u, weak=False, cold_wall=False)
x_crit_hot

180.10524947268095 cm

P 9.5

mu_air = lambda T: T**0.65 * kg / (m * s)
T_w = 1500 * K

# Table 7.9
M_inf = 6.8
T_inf = 231.5 * K
Re_inf_u = 1.5e06 / m
L = 55 * m
alpha = 6 * deg
x = 1 * m

C_inf = chapman_rubesin(T_w, T_inf, func=mu_air)
C_inf

0.5199491920651366

Re_inf = Re_inf_u * x
Chi = interaction_parameter(M_inf, Re_inf, C_inf, laminar=True)
Chi

0.18512350420167742

V = rarefaction_parameter(M_inf, Re_inf, C_inf)
V

0.004003535990520706

For a hot wall (as specified by the problem):

Chi_u = Chi * np.sqrt(x)
critical_distance(Chi_u, weak=False, cold_wall=False)

0.00214191948799428 m

Very small critical distance. Hence, if the lower stage would have a sharp nose, strong interaction phenomena could be neglected.

P 9.6

M_inf = 10
H = 50e03 * m
T_w = 1500 * K
gamma = 1.4
R = 287.05 * J / (kg * K)
mu_air = lambda T: 0.04644e-05 * T.magnitude**0.65 * (kg / (m * s))
x = 1 * m

atmosphere = Atmosphere(H.magnitude)
T_inf = atmosphere.temperature[0] * K
rho_inf = atmosphere.density[0] * kg / m**3
a_inf = sound_speed(gamma, R, T_inf)
v_inf = a_inf * M_inf
mu_inf = mu_air(T_inf)
Re_inf_u = Reynolds(rho_inf, v_inf, mu_inf, Q_(1)).to("1 / m")
Re_inf_u

191340.65229976506 1/m

C_inf = chapman_rubesin(T_w, T_inf, func=mu_air)
C_inf

0.5491751411573942

Chi = interaction_parameter(M_inf, Re_inf_u * x, C_inf)
Chi

1.694149804771939

V = rarefaction_parameter(M_inf, Re_inf_u * x, C_inf)
V

0.016941498047719387

# eq (9.40)
Chi_u = Chi * np.sqrt(x)
# cold_wall=False because hot surface
critical_distance(Chi_u, weak=False, cold_wall=False)

0.17938397256304994 m
