Chapter 4 Problems
of “Modern Compressible Flow With Historical Perspective”, Third Edition, John D. Anderson Jr
[1]:
import pygasflow
from pygasflow.solvers import *
from pygasflow.shockwave import PressureDeflectionLocus
from pygasflow.interactive import PressureDeflectionDiagram
import pint
import numpy as np
ureg = pint.UnitRegistry()
# use "~P" to format units with unicode
ureg.formatter.default_format = "~"
# let pygasflow knows which UnitRegistry to use
pygasflow.defaults.pint_ureg = ureg
# dictionary results offers improved code readability
pygasflow.defaults.solver_to_dict = True
# shorcuts for conveniance
kg = ureg.kg
K = ureg.K
degR = ureg.degR
degC = ureg.degC
J = ureg.J
m = ureg.m
atm = ureg.atm
Pa = ureg.pascal
sec = ureg.s
deg = ureg.deg
ft = ureg.feet
lb = ureg.lb
lbf = ureg.lbf
Q_ = ureg.Quantity
gamma = 1.4
R = 287.05 * J / (kg * K)
P 4.1
[2]:
beta = 35
p1 = 2000 * lbf / ft**2
T1 = Q_(520, degR)
V1 = 3355 * ft / sec
[3]:
a1 = np.sqrt(gamma * R * T1).to("feet / sec")
a1
[3]:
1117.8750161615742 ft/s
[4]:
M1 = V1 / a1
M1
[4]:
3.0012299689101187
[5]:
res = oblique_shockwave_solver("mu", M1, "beta", beta, gamma=gamma)
res.show()
key quantity
---------------------
mu Mu 3.00122997
mnu Mnu 1.72143479
md Md 2.12235516
mnd Mnd 0.63509251
beta beta [deg] 35.00000000
theta theta [deg] 17.58806818
pr pd/pu 3.29056069
dr rhod/rhou 2.23273544
tr Td/Tu 1.47377993
tpr p0d/p0u 0.84675091
[6]:
M2 = res["md"]
T2 = res["tr"] * T1
p2 = res["pr"] * p1
a2 = np.sqrt(gamma * R * T2).to("feet / sec")
V2 = M2 * a2
print("M2 =", M2)
print("T2 =", T2)
print("p2 =", p2)
print("V2 =", V2)
M2 = 2.122355155390347
T2 = 766.3655650131336 °R
p2 = 6581.121386426136 lbf / ft ** 2
V2 = 2880.2330533718173 ft / s
P 4.2
[7]:
M1 = 2
theta = 10
[8]:
res = shockwave_solver("mu", M1, "theta", theta, gamma=gamma)
res.show()
key quantity
---------------------
mu Mu 2.00000000
mnu Mnu 1.26713804
md Md 1.64052223
mnd Mnd 0.80319064
beta beta 39.31393184
theta theta 10.00000000
pr pd/pu 1.70657860
dr rhod/rhou 1.45842561
tr Td/Tu 1.17015128
tpr p0d/p0u 0.98464402
[9]:
P02_P01 = res["tpr"]
P02_P01
[9]:
np.float64(0.9846440225034325)
P 4.3
[10]:
M1 = 3
p1 = 1 * atm
[11]:
from pygasflow.shockwave import detachment_point_oblique_shock
beta, theta_max = detachment_point_oblique_shock(M1, gamma)
theta_max
[11]:
np.float64(34.0734397756058)
[12]:
beta
[12]:
np.float64(65.2408429247936)
[13]:
res = shockwave_solver("mu", M1, "beta", beta, gamma=gamma)
res.show()
key quantity
---------------------
mu Mu 3.00000000
mnu Mnu 2.72422875
md Md 0.95404661
mnd Mnd 0.49375756
beta beta 65.24084292
theta theta 34.07343978
pr pd/pu 8.49165936
dr rhod/rhou 3.58481764
tr Td/Tu 2.36878419
tpr p0d/p0u 0.41510057
[14]:
p2_p1 = res["pr"]
p2 = p2_p1 * p1
p2
[14]:
8.49165935917197 atm
P 4.4
[15]:
M1 = 3.5
p1 = 1 * atm
p2 = 5.48 * atm
[16]:
res_normal = normal_shockwave_solver("pressure", p2 / p1, gamma=gamma)
res_normal.show()
key quantity
---------------------
mu Mu 2.20000000
md Md 0.54705582
pr pd/pu 5.48000000
dr rhod/rhou 2.95121951
tr Td/Tu 1.85685950
tpr p0d/p0u 0.62813631
[17]:
Mn1 = res_normal["mu"]
Mn1
[17]:
np.float64(2.2)
[18]:
res = shockwave_solver("mu", M1, "mnu", Mn1, gamma=gamma)
res.show()
key quantity
---------------------
mu Mu 3.50000000
mnu Mnu 2.20000000
md Md 2.07120229
mnd Mnd 0.54705582
beta beta 38.94480359
theta theta 23.62985080
pr pd/pu 5.48000000
dr rhod/rhou 2.95121951
tr Td/Tu 1.85685950
tpr p0d/p0u 0.62813631
[19]:
beta = res["beta"]
beta
[19]:
np.float64(38.94480359409562)
[20]:
theta = res["theta"]
theta
[20]:
np.float64(23.62985080421891)
P 4.5
[21]:
M1 = 3
theta = 20
p1 = 2116 * lbf / ft**2
T1 = Q_(519, degR)
[22]:
res = shockwave_solver("mu", M1, "theta", theta, gamma=gamma)
res.show()
key quantity
---------------------
mu Mu 3.00000000
mnu Mnu 1.83721625
md Md 1.99413167
mnd Mnd 0.60839147
beta beta 37.76363415
theta theta 20.00000000
pr pd/pu 3.77125746
dr rhod/rhou 2.41806593
tr Td/Tu 1.55961730
tpr p0d/p0u 0.79601825
[23]:
p2 = res["pr"] * p1
T2 = res["tr"] * T1
beta = res["beta"]
M2 = res["md"]
[24]:
beta
[24]:
np.float64(37.76363414837576)
[25]:
T2
[25]:
809.441379540978 °R
[26]:
p2
[26]:
7979.980791882904 lbf/ft2
[27]:
M2
[27]:
np.float64(1.9941316655645605)
P 4.6
Figure 4.18 of “Modern Compressible Flow with Historical Perspective”, Third Edition, John D. Anderson.
[28]:
M1 = 3.6
theta1 = 20
[29]:
l1 = PressureDeflectionLocus(M=M1, gamma=gamma, label="1")
shock1 = l1.shockwave_at_theta(theta1)
shock1.show()
key quantity
---------------------
mu Mu 3.60000000
mnu Mnu 2.01882925
md Md 2.35520083
mnd Mnd 0.57416754
beta beta 34.11016555
theta theta 20.00000000
pr pd/pu 4.58828345
tr rhod/rhou 1.70285858
dr Td/Tu 2.69445948
tpr p0d/p0u 0.71207412
[30]:
l2 = l1.new_locus_from_shockwave(theta1, label="2")
theta3 = 0
shock2 = l2.shockwave_at_theta(theta3)
shock2.show()
key quantity
---------------------
mu Mu 2.35520083
mnu Mnu 1.66692918
md Md 1.53331885
mnd Mnd 0.64930284
beta beta 45.05337524
theta theta -20.00000000
pr pd/pu 14.10940762
tr rhod/rhou 2.44318284
dr Td/Tu 5.77501095
tpr p0d/p0u 0.61896044
[31]:
beta2 = shock2["beta"]
theta2 = shock2["theta"]
p3_p1 = shock2["pr"]
phi = beta2 - theta1
print("Angle of the reflected shock relative to the straight wall:")
print("\tphi =", phi)
Angle of the reflected shock relative to the straight wall:
phi = 25.053375237345655
[32]:
# initialize the diagram
d = PressureDeflectionDiagram()
d.add_locus(l1)
d.add_locus(l2)
# add a path highlighting the flow direction
l, arrows = d.add_path((l1, theta1), (l2, theta3))
d.add_state(theta3, p3_p1, "3")
# further customize the diagram
d.move_legend_outside()
d.y_range = (0, 16)
d.x_range = (-40, 40)
d.show_figure()
P 4.7
[33]:
beta = 30
M1 = 2.8
p1 = 1 * atm
T1 = 300 * K
Consider again Figure 4.18 shown in P 4.6:
[34]:
from pygasflow.shockwave import theta_from_mach_beta
theta1 = theta_from_mach_beta(M1, beta, gamma)
theta1
[34]:
np.float64(11.134851130136617)
[35]:
l1 = PressureDeflectionLocus(M=M1, gamma=gamma, label="1")
shock1 = l1.shockwave_at_theta(theta1)
shock1.show()
key quantity
---------------------
mu Mu 2.80000000
mnu Mnu 1.40000000
md Md 2.28770013
mnd Mnd 0.73970927
beta beta 30.00000000
theta theta 11.13485113
pr pd/pu 2.12000000
tr rhod/rhou 1.25469388
dr Td/Tu 1.68965517
tpr p0d/p0u 0.95819441
[36]:
l2 = l1.new_locus_from_shockwave(theta1, label="2")
theta3 = 0
shock2 = l2.shockwave_at_theta(theta3)
shock2.show()
key quantity
---------------------
mu Mu 2.28770013
mnu Mnu 1.33287598
md Md 1.85622676
mnd Mnd 0.76978466
beta beta 35.63552836
theta theta -11.13485113
pr pd/pu 4.04068774
tr rhod/rhou 1.52032227
dr Td/Tu 2.65778369
tpr p0d/p0u 0.93256796
[37]:
# Flow quantities in region 3
res = l2.flow_quantities_after_shockwave(0, p1, T1)
res.show()
key quantity
---------------------
M M 1.85622676
T T [K] 456.09668068
p p [atm] 4.04068774
rho rho nan
T0 T0 [K] 770.40000000
p0 p0 [atm] 25.30830492
rho0 rho0 nan
P 4.8
[38]:
M1 = 4
p1 = 1 * atm
[39]:
res_ise = isentropic_solver("m", M1)
res_ise.show()
key quantity
----------------------------
m M 4.00000000
pr P / P0 0.00658609
dr rho / rho0 0.02766157
tr T / T0 0.23809524
prs P / P* 0.01246700
drs rho / rho* 0.04363449
trs T / T* 0.28571429
urs U / U* 2.13808994
ars A / A* 10.71875000
ma Mach Angle 14.47751219
pm Prandtl-Meyer 65.78481980
[40]:
P01 = (1 / res_ise["pr"]) * p1
P01
[40]:
151.83521766968295 atm
(a)
[41]:
shock = normal_shockwave_solver("mu", M1)
shock.show()
key quantity
---------------------
mu Mu 4.00000000
md Md 0.43495884
pr pd/pu 18.50000000
dr rhod/rhou 4.57142857
tr Td/Tu 4.04687500
tpr p0d/p0u 0.13875622
[42]:
M2 = shock["md"]
M2
[42]:
np.float64(0.43495883620084)
[43]:
P02 = shock["tpr"] * P01
P02
[43]:
21.068081002112113 atm
(b)
[44]:
beta = 40
[45]:
shock1 = oblique_shockwave_solver("mu", M1, "beta", beta)
shock1.show()
key quantity
---------------------
mu Mu 4.00000000
mnu Mnu 2.57115044
md Md 2.12299743
mnd Mnd 0.50640589
beta beta 40.00000000
theta theta 26.20000079
pr pd/pu 7.54595034
dr rhod/rhou 3.41620196
tr Td/Tu 2.20887127
tpr p0d/p0u 0.47110479
[46]:
shock2 = normal_shockwave_solver("mu", shock1["md"])
shock2.show()
key quantity
---------------------
mu Mu 2.12299743
md Md 0.55785338
pr pd/pu 5.09163778
dr rhod/rhou 2.84446962
tr Td/Tu 1.79001307
tpr p0d/p0u 0.66353036
[47]:
M3 = shock2["md"]
M3
[47]:
np.float64(0.5578533802322064)
[48]:
P03 = shock1["tpr"] * shock2["tpr"] * P01
P03
[48]:
47.462524647026896 atm
P 4.9
Figure 4.23 of “Modern Compressible Flow with Historical Perspective”, Third Edition, John D. Anderson.
[49]:
M1 = 3
p1 = 1 * atm
theta2 = 20
theta3 = -15
[50]:
l1 = PressureDeflectionLocus(M=M1, label="1")
l2 = l1.new_locus_from_shockwave(theta2, label="2")
l3 = l1.new_locus_from_shockwave(theta3, label="3")
phi, p4_p1 = l2.intersection(l3)
theta4 = phi - l3.theta_origin
theta4p = phi - l2.theta_origin
print("Intersection between locus M2 and locus M3 happens at:")
print("Deflection Angle, Φ [deg]:", phi)
print("Pressure ratio to freestream:", p4_p1)
print()
print("From geometry:")
print("theta_4 [deg] =", theta4)
print("theta_4' [deg] =", theta4p)
Intersection between locus M2 and locus M3 happens at:
Deflection Angle, Φ [deg]: 4.795958931693682
Pressure ratio to freestream: 8.352551913417367
From geometry:
theta_4 [deg] = 19.795958931693683
theta_4' [deg] = -15.204041068306317
[51]:
p4 = p4_p1 * p1
p4
[51]:
8.352551913417367 atm
[52]:
d = PressureDeflectionDiagram()
d.add_locus(l1)
d.add_locus(l2)
d.add_locus(l3)
d.add_path((l1, theta2), (l2, phi))
d.add_path((l1, theta3), (l3, phi))
d.add_state(
phi, p4_p1, "4=4'",
background_fill_color="white",
background_fill_alpha=0.8)
d.move_legend_outside()
d.y_range = (0, 18)
d.show_figure()
P 4.10
Figure 4.32 of “Modern Compressible Flow with Historical Perspective”, Third Edition, John D. Anderson.
[53]:
theta2 = 30
M1 = 2
p1 = 3 * atm
T1 = 400 * K
[54]:
res1 = isentropic_solver("m", M1)
res1.show()
key quantity
----------------------------
m M 2.00000000
pr P / P0 0.12780453
dr rho / rho0 0.23004815
tr T / T0 0.55555556
prs P / P* 0.24192491
drs rho / rho* 0.36288737
trs T / T* 0.66666667
urs U / U* 1.63299316
ars A / A* 1.68750000
ma Mach Angle 30.00000000
pm Prandtl-Meyer 26.37976081
\[\theta_{2} = \nu(M_{2}) - \nu(M_{1}) \quad \rightarrow \quad \nu(M_{2}) = \theta_{2} + \nu(M_{1})\]
[55]:
mu1 = res1["ma"]
nu1 = res1["pm"]
nu2 = theta2 + nu1
nu2
[55]:
np.float64(56.37976081341645)
[56]:
res2 = isentropic_solver("prandtl_meyer", nu2)
res2.show()
key quantity
----------------------------
m M 3.36827477
pr P / P0 0.01583151
dr rho / rho0 0.05175406
tr T / T0 0.30589880
prs P / P* 0.02996792
drs rho / rho* 0.08163898
trs T / T* 0.36707856
urs U / U* 2.04073693
ars A / A* 6.00226862
ma Mach Angle 17.27077828
pm Prandtl-Meyer 56.37976081
[57]:
p1_p0 = res1["pr"]
T1_T0 = res1["tr"]
p2_p0 = res2["pr"]
T2_T0 = res2["tr"]
M2 = res2["m"]
mu2 = res2["ma"]
p2 = p2_p0 / p1_p0 * p1
T2 = T2_T0 / T1_T0 * T1
[58]:
M2
[58]:
np.float64(3.368274773334363)
[59]:
p2
[59]:
0.3716184190874734 atm
[60]:
T2
[60]:
220.2471363316273 K
[61]:
afml = mu1
arml = mu2 - theta2
print("Angle of forward Mach line, mu1 =", afml)
print("Angle of rearward Mach line, mu2 =", arml)
Angle of forward Mach line, mu1 = 30.000000000000004
Angle of rearward Mach line, mu2 = -12.729221721532138
P 4.11
[62]:
M1 = 3
p2_p1 = 0.4
[63]:
res1 = isentropic_solver("m", M1)
res1.show()
key quantity
----------------------------
m M 3.00000000
pr P / P0 0.02722368
dr rho / rho0 0.07622631
tr T / T0 0.35714286
prs P / P* 0.05153250
drs rho / rho* 0.12024251
trs T / T* 0.42857143
urs U / U* 1.96396101
ars A / A* 4.23456790
ma Mach Angle 19.47122063
pm Prandtl-Meyer 49.75734674
[64]:
mu1 = res1["ma"] * deg
nu1 = res1["pm"] * deg
p1_p01 = res1["pr"]
\[\frac{p_{2}}{p_{1}} = \frac{p_{2}}{p_{02}} \frac{p_{01}}{p_{1}} = 0.4 \quad \implies \quad \frac{p_{2}}{p_{02}} = \frac{p_{1}}{p_{01}} \frac{p_{2}}{p_{1}}\]
[65]:
p2_p02 = p1_p01 * p2_p1
p2_p02
[65]:
np.float64(0.010889473481545129)
[66]:
res2 = isentropic_solver("pressure", p2_p02)
res2.show()
key quantity
----------------------------
m M 3.63176061
pr P / P0 0.01088947
dr rho / rho0 0.03961522
tr T / T0 0.27488106
prs P / P* 0.02061300
drs rho / rho* 0.06249067
trs T / T* 0.32985728
urs U / U* 2.08583643
ars A / A* 7.67192906
ma Mach Angle 15.98278625
pm Prandtl-Meyer 60.57522486
[67]:
mu2 = res2["ma"] * deg
nu2 = res2["pm"] * deg
[68]:
theta2 = nu2 - nu1
theta2
[68]:
10.817878118309977 deg
[69]:
afml = mu1
arml = mu2 - theta2
print("Angle of forward Mach line:", afml)
print("Angle of rearward Mach line:", arml)
Angle of forward Mach line: 19.47122063449069 deg
Angle of rearward Mach line: 5.164908132843042 deg
P 4.12
[70]:
M1 = 4
p1 = 1 * atm
theta = 15 * deg
[71]:
res1 = isentropic_solver("m", M1)
res1.show()
key quantity
----------------------------
m M 4.00000000
pr P / P0 0.00658609
dr rho / rho0 0.02766157
tr T / T0 0.23809524
prs P / P* 0.01246700
drs rho / rho* 0.04363449
trs T / T* 0.28571429
urs U / U* 2.13808994
ars A / A* 10.71875000
ma Mach Angle 14.47751219
pm Prandtl-Meyer 65.78481980
[72]:
mu1 = res1["ma"] * deg
nu1 = res1["pm"] * deg
p1_p01 = res1["pr"]
\[\theta_{2} = \nu(M_{2}) - \nu(M_{1}) \quad \rightarrow \quad \nu(M_{2}) = \theta_{2} + \nu(M_{1})\]
[73]:
nu2 = theta + nu1
nu2
[73]:
80.78481979774853 deg
[74]:
res2 = isentropic_solver("prandtl_meyer", nu2)
res2.show()
key quantity
----------------------------
m M 5.44294514
pr P / P0 0.00114420
dr rho / rho0 0.00792374
tr T / T0 0.14440161
prs P / P* 0.00216589
drs rho / rho* 0.01249923
trs T / T* 0.17328194
urs U / U* 2.26574277
ars A / A* 35.31068684
ma Mach Angle [deg] 10.58675162
pm Prandtl-Meyer [deg] 80.78481980
[75]:
M2 = res2["m"]
p2_p02 = res2["pr"]
mu2 = res2["ma"]
But \(p_{02} = p_{01}\):
[76]:
p2 = p2_p02 / p1_p01 * p1
p2
[76]:
0.17372994365140412 atm
[77]:
M2
[77]:
np.float64(5.4429451442492365)
[78]:
res3 = shockwave_solver("mu", M2, "theta", theta)
res3.show()
key quantity
---------------------
mu Mu 5.44294514
mnu Mnu 2.17006096
md Md 3.73024023
mnd Mnd 0.55113671
beta beta [deg] 23.49646058
theta theta [deg] 15.00000000
pr pd/pu 5.32735865
dr rhod/rhou 2.91013580
tr Td/Tu 1.83062201
tpr p0d/p0u 0.64182489
[79]:
M3 = res3["md"]
p3_p2 = res3["pr"]
p3 = p3_p2 * p2
p3
[79]:
0.9255217177996948 atm
[80]:
M3
[80]:
np.float64(3.730240229949434)
P 4.14
[81]:
theta = 20 * deg
M1 = 3
p1 = 2116 * lb / ft**2
Oblique shockwave followed by a normal shockwave in front of the Pitot tube.
[82]:
res1 = isentropic_solver("m", M1)
res1.show()
key quantity
----------------------------
m M 3.00000000
pr P / P0 0.02722368
dr rho / rho0 0.07622631
tr T / T0 0.35714286
prs P / P* 0.05153250
drs rho / rho* 0.12024251
trs T / T* 0.42857143
urs U / U* 1.96396101
ars A / A* 4.23456790
ma Mach Angle 19.47122063
pm Prandtl-Meyer 49.75734674
[83]:
p01 = (1 / res1["pr"]) * p1
p01
[83]:
77726.43933927857 lb/ft2
[84]:
shock1 = oblique_shockwave_solver("mu", M1, "theta", theta)
shock1.show()
key quantity
---------------------
mu Mu 3.00000000
mnu Mnu 1.83721625
md Md 1.99413167
mnd Mnd 0.60839147
beta beta [deg] 37.76363415
theta theta [deg] 20.00000000
pr pd/pu 3.77125746
dr rhod/rhou 2.41806593
tr Td/Tu 1.55961730
tpr p0d/p0u 0.79601825
[85]:
p2_p1 = shock1["pr"]
p02_p01 = shock1["tpr"]
M2 = shock1["md"]
[86]:
shock2 = normal_shockwave_solver("mu", M2)
shock2.show()
key quantity
---------------------
mu Mu 1.99413167
md Md 0.57835792
pr pd/pu 4.47265462
dr rhod/rhou 2.65796293
tr Td/Tu 1.68273777
tpr p0d/p0u 0.72361541
[87]:
p3_p2 = shock2["pr"]
p3 = p3_p2 * p2_p1 * p1
p3
[87]:
35691.69792607025 lb/ft2
[88]:
p03_p02 = shock2["tpr"]
p03 = p03_p02 * p02_p01 * p01
p03
[88]:
44771.29015720242 lb/ft2
P 4.16
This is a modified version of Figure 4.35 of “Modern Compressible Flow with Historical Perspective”, Third Edition, John D. Anderson.
[89]:
epsilon = 15 * deg
alpha = 5 * deg
M1 = 2
p1 = 2116 * lb / ft**2
t = 0.5 * ft
w = 1 * ft
(1)
[90]:
res1 = isentropic_solver("m", M1)
res1.show()
key quantity
----------------------------
m M 2.00000000
pr P / P0 0.12780453
dr rho / rho0 0.23004815
tr T / T0 0.55555556
prs P / P* 0.24192491
drs rho / rho* 0.36288737
trs T / T* 0.66666667
urs U / U* 1.63299316
ars A / A* 1.68750000
ma Mach Angle 30.00000000
pm Prandtl-Meyer 26.37976081
[91]:
p01 = (1 / res1["pr"]) * p1
p01
[91]:
16556.53422549113 lb/ft2
(2)
[92]:
theta1 = epsilon - alpha
shock1 = shockwave_solver("mu", M1, "theta", theta1)
shock1.show()
key quantity
---------------------
mu Mu 2.00000000
mnu Mnu 1.26713804
md Md 1.64052223
mnd Mnd 0.80319064
beta beta [deg] 39.31393184
theta theta [deg] 10.00000000
pr pd/pu 1.70657860
dr rhod/rhou 1.45842561
tr Td/Tu 1.17015128
tpr p0d/p0u 0.98464402
[93]:
p2_p1 = shock1["pr"]
p2 = p2_p1 * p1
p2
[93]:
3611.12032606407 lb/ft2
[94]:
M2 = shock1["md"]
M2
[94]:
np.float64(1.6405222290010815)
[95]:
p02 = shock1["tpr"] * p01
p02
[95]:
16302.29245850334 lb/ft2
(4)
[96]:
theta4 = epsilon + alpha
shock2 = shockwave_solver("mu", M1, "theta", theta4)
shock2.show()
key quantity
---------------------
mu Mu 2.00000000
mnu Mnu 1.60611226
md Md 1.21021840
mnd Mnd 0.66660640
beta beta [deg] 53.42294053
theta theta [deg] 20.00000000
pr pd/pu 2.84286271
dr rhod/rhou 2.04200572
tr Td/Tu 1.39219135
tpr p0d/p0u 0.89291399
[97]:
M4 = shock2["md"]
M4
[97]:
np.float64(1.2102184008268027)
[98]:
p4_p1 = shock2["pr"]
p4 = p4_p1 * p1
p4
[98]:
6015.497483856511 lb/ft2
[99]:
p04 = shock2["tpr"] * p01
p04
[99]:
14783.560957863161 lb/ft2
(3)
[100]:
flow2 = isentropic_solver("m", M2)
flow2.show()
key quantity
----------------------------
m M 1.64052223
pr P / P0 0.22150997
dr rho / rho0 0.34074051
tr T / T0 0.65008405
prs P / P* 0.41930268
drs rho / rho* 0.53749804
trs T / T* 0.78010086
urs U / U* 1.44896367
ars A / A* 1.28400175
ma Mach Angle 37.55783897
pm Prandtl-Meyer 16.05812747
[101]:
theta = 2 * epsilon
nu2 = flow2["pm"] * deg
nu3 = theta + nu2
nu3
[101]:
46.05812746691443 deg
[102]:
flow3 = isentropic_solver("prandtl_meyer", nu3)
flow3.show()
key quantity
----------------------------
m M 2.81502588
pr P / P0 0.03601323
dr rho / rho0 0.09308967
tr T / T0 0.38686603
prs P / P* 0.06817050
drs rho / rho* 0.14684346
trs T / T* 0.46423924
urs U / U* 1.91802081
ars A / A* 3.55052092
ma Mach Angle [deg] 20.80794089
pm Prandtl-Meyer [deg] 46.05812747
[103]:
M3 = flow3["m"]
M3
[103]:
np.float64(2.8150258807892357)
Note that \(p_{02} = p_{03}\).
[104]:
p3 = flow3["pr"] * p02
p3
[104]:
587.0982323799711 lb/ft2
(5)
[105]:
flow4 = isentropic_solver("m", M4)
flow4.show()
key quantity
----------------------------
m M 1.21021840
pr P / P0 0.40690450
dr rho / rho0 0.52609729
tr T / T0 0.77343964
prs P / P* 0.77024139
drs rho / rho* 0.82988742
trs T / T* 0.92812757
urs U / U* 1.16591688
ars A / A* 1.03350654
ma Mach Angle 55.72022231
pm Prandtl-Meyer 3.81141102
[106]:
theta = 2 * epsilon
nu4 = flow4["pm"] * deg
nu5 = theta + nu4
nu5
[106]:
33.81141102493445 deg
[107]:
flow5 = isentropic_solver("prandtl_meyer", nu5)
flow5.show()
key quantity
----------------------------
m M 2.28125903
pr P / P0 0.08235257
dr rho / rho0 0.16806748
tr T / T0 0.48999707
prs P / P* 0.15588759
drs rho / rho* 0.26511653
trs T / T* 0.58799648
urs U / U* 1.74929060
ars A / A* 2.15626049
ma Mach Angle [deg] 25.99893434
pm Prandtl-Meyer [deg] 33.81141102
[108]:
M5 = flow5["m"]
M5
[108]:
np.float64(2.2812590270489608)
Note that \(p_{04} = p_{05}\):
[109]:
p5 = flow5["pr"] * p04
p5
[109]:
1217.4642926223185 lb/ft2
drag and lift
[110]:
# length of oblique faces
l = (t / 2) / np.sin(epsilon)
l
[110]:
0.9659258262890684 ft
[111]:
area = l * w
area
[111]:
0.9659258262890684 ft2
(Normal) forces exerted by pressure to the surfaces:
[112]:
F2 = p2 * area
F2
[112]:
3488.074384782687 lb
[113]:
F3 = p3 * area
F3
[113]:
567.0933452244751 lb
[114]:
F4 = p4 * area
F4
[114]:
5810.524377633913 lb
[115]:
F5 = p5 * area
F5
[115]:
1175.9802028286492 lb
Drag:
[116]:
D = F2 * np.sin(epsilon - alpha) + F4 * np.sin(epsilon + alpha) - F3 * np.sin(epsilon + alpha) - F5 * np.sin(epsilon - alpha)
D
[116]:
2194.849974513566 lb
Lift:
[117]:
L = -F2 * np.cos(epsilon - alpha) + F4 * np.cos(epsilon + alpha) - F3 * np.cos(epsilon + alpha) + F5 * np.cos(epsilon - alpha)
L
[117]:
2650.245172672231 lb

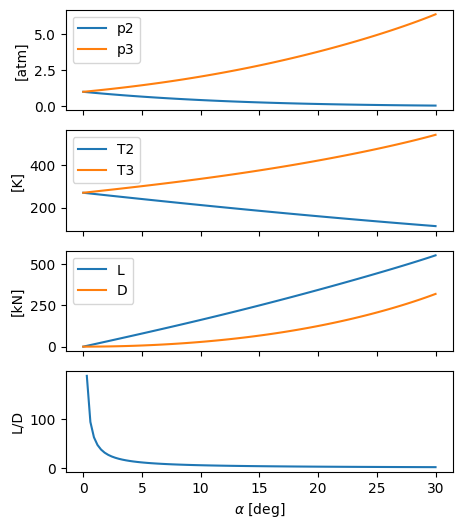

P 4.17
Figure 4.37 of “Modern Compressible Flow with Historical Perspective”, Third Edition, John D. Anderson.
[118]:
c = 1 * m
M1 = 3
p1 = 1 * atm
T1 = 270 * K
w = 1 * m
[119]:
alpha_min = 0 * deg
alpha_max = 30 * deg
N = 100
alpha = np.linspace(alpha_min, alpha_max, N)
[120]:
flow1 = isentropic_solver("m", M1)
flow1.show()
key quantity
----------------------------
m M 3.00000000
pr P / P0 0.02722368
dr rho / rho0 0.07622631
tr T / T0 0.35714286
prs P / P* 0.05153250
drs rho / rho* 0.12024251
trs T / T* 0.42857143
urs U / U* 1.96396101
ars A / A* 4.23456790
ma Mach Angle 19.47122063
pm Prandtl-Meyer 49.75734674
[121]:
p0 = (1 / flow1["pr"]) * p1
p0
[121]:
36.732721804952064 atm
[122]:
T0 = (1 / flow1["tr"]) * T1
T0
[122]:
756.0 K
[123]:
from collections import defaultdict
results = defaultdict(list)
def compute(alpha):
nu1 = flow1["pm"] * deg
nu2 = alpha + nu1
flow2 = isentropic_solver("prandtl_meyer", nu2)
p2 = flow2["pr"] * p0
T2 = flow2["tr"] * T0
shock = shockwave_solver("mu", M1, "theta", alpha)
p3 = shock["pr"] * p1
T3 = shock["tr"] * T1
Lp = ((p3 - p2) * c * w * np.cos(alpha.to("radian"))).to("N")
Dp = ((p3 - p2) * c * w * np.sin(alpha.to("radian"))).to("N")
results["p2"].append(p2)
results["T2"].append(T2)
results["p3"].append(p3)
results["T3"].append(T3)
results["Lp"].append(Lp)
results["Dp"].append(Dp)
results["L_D"].append(Lp / Dp)
for a in alpha:
compute(a)
# post-processing: create numpy arrays
for k in results:
units = 1 if results[k][0].unitless else results[k][0].units
results[k] = np.array([r.magnitude for r in results[k]]) * units
/home/davide/Documents/Development/envs/pygas/lib/python3.12/site-packages/pint/facets/plain/quantity.py:1029: RuntimeWarning: divide by zero encountered in scalar divide
magnitude = magnitude_op(new_self._magnitude, other._magnitude)
[124]:
import matplotlib.pyplot as plt
fig, ax = plt.subplots(4, 1, sharex=True, figsize=(5, 6))
ax[0].plot(alpha.magnitude, results["p2"].magnitude, label="p2")
ax[0].plot(alpha.magnitude, results["p3"].magnitude, label="p3")
ax[0].legend()
ax[0].set_ylabel("[atm]")
ax[1].plot(alpha.magnitude, results["T2"].magnitude, label="T2")
ax[1].plot(alpha.magnitude, results["T3"].magnitude, label="T3")
ax[1].legend()
ax[1].set_ylabel("[K]")
ax[2].plot(alpha.magnitude, results["Lp"].magnitude / 1000, label="L")
ax[2].plot(alpha.magnitude, results["Dp"].magnitude / 1000, label="D")
ax[2].legend()
ax[2].set_ylabel("[kN]")
ax[3].plot(alpha.magnitude, results["L_D"])
ax[3].set_xlabel(r"$\alpha$ [deg]")
ax[3].set_ylabel("L/D")
plt.show()
P 4.18
[125]:
M1 = 2
alpha = 2 * deg
c = 1 * m
w = 1 * ft
p1 = 1 * atm
[126]:
# skin drag friction: adapted from example 1.8
import sympy as sp
a, b, epsilon = sp.symbols("a, b, epsilon")
tw = (13 * epsilon**(sp.Rational(2, 10))) # lb/ft**2
tmp = float(tw.integrate((epsilon, a, b)).subs({a:0, b: c.to("ft").magnitude}))
# NOTE: the shear stress acts on both sides of the flat plate
Df = (tmp * 2 * np.cos(alpha.to("radian"))) * lbf
Df
[126]:
90.09682891554544 lbf
[127]:
flow1 = isentropic_solver("m", M1)
flow1.show()
key quantity
----------------------------
m M 2.00000000
pr P / P0 0.12780453
dr rho / rho0 0.23004815
tr T / T0 0.55555556
prs P / P* 0.24192491
drs rho / rho* 0.36288737
trs T / T* 0.66666667
urs U / U* 1.63299316
ars A / A* 1.68750000
ma Mach Angle 30.00000000
pm Prandtl-Meyer 26.37976081
[128]:
nu1 = flow1["pm"] * deg
p1_p01 = flow1["pr"]
[129]:
nu2 = alpha + nu1
flow2 = isentropic_solver("prandtl_meyer", nu2)
flow2.show()
key quantity
----------------------------
m M 2.07331377
pr P / P0 0.11400624
dr rho / rho0 0.21202037
tr T / T0 0.53771362
prs P / P* 0.21580574
drs rho / rho* 0.33444962
trs T / T* 0.64525634
urs U / U* 1.66544837
ars A / A* 1.79530450
ma Mach Angle [deg] 28.83701273
pm Prandtl-Meyer [deg] 28.37976081
[130]:
M2 = flow2["m"]
M2
[130]:
np.float64(2.0733137748327835)
[131]:
p2_p02 = flow2["pr"]
p2 = p2_p02 * (1 / p1_p01) * p1
p2
[131]:
0.8920360308781463 atm
[132]:
shock = shockwave_solver("mu", M1, "theta", alpha)
shock.show()
key quantity
---------------------
mu Mu 2.00000000
mnu Mnu 1.04934767
md Md 1.92805111
mnd Mnd 0.95369922
beta beta [deg] 31.64628844
theta theta [deg] 2.00000000
pr pd/pu 1.11798561
dr rhod/rhou 1.08287851
tr Td/Tu 1.03242016
tpr p0d/p0u 0.99985849
[133]:
p3_p1 = shock["pr"]
p3 = p3_p1 * p1
p3
[133]:
1.1179856110851587 atm
[134]:
L = (p3 - p2) * c * w * np.cos(alpha)
L = L.to("lbf")
L
[134]:
1567.805041519068 lbf
[135]:
D = (p3 - p2) * c * w * np.sin(alpha)
D = D.to("lbf")
D
[135]:
54.748958462887344 lbf
[136]:
percentage = Df / (Df + D)
percentage
[136]:
0.6220189799524722
In comparison to example 1.8, at lower angle of attacks the skin drag becomes comparable to the wave drag.
P 4.19
This is a modified version of Figure 4.40 of “Modern Compressible Flow with Historical Perspective”, Third Edition, John D. Anderson.
[137]:
M1 = 4
theta = 20 * deg
[138]:
# c: chord length of the wedge
# p1 : free stream pressure
import sympy as sp
c, p1 = sp.symbols("c, p1")
# l: length of the oblique side
l = c / sp.cos(theta.to("radian").magnitude)
# h: length of the vertical side
h = (2 * l * sp.sin(theta.to("radian").magnitude)).trigsimp()
\[c_{d} = \frac{D'}{q_{1} c}\]
where:
\(D'\): drag per unit span.
\(q_{1} = \frac{\gamma}{2} p_{1} M_{1}^{2}\): dynamic pressure.
\(c\): chord length of the wedge
[139]:
shock = shockwave_solver("mu", M1, "theta", theta)
shock.show()
key quantity
---------------------
mu Mu 4.00000000
mnu Mnu 2.14707226
md Md 2.56861689
mnd Mnd 0.55437017
beta beta [deg] 32.46389685
theta theta [deg] 20.00000000
pr pd/pu 5.21157250
dr rhod/rhou 2.87822560
tr Td/Tu 1.81068937
tpr p0d/p0u 0.65240150
[140]:
p2_p1 = shock["pr"]
Dp = l * p2_p1 * p1 * sp.sin(theta) * 2 - h * p1
Dp = Dp.n()
Dp
[140]:
$\displaystyle 3.06577406052391 c p_{1}$
[141]:
q1 = (gamma / 2) * p1 * M1**2
q1
[141]:
$\displaystyle 11.2 p_{1}$
[142]:
cd = Dp / (q1 * c)
cd
[142]:
$\displaystyle 0.273729826832492$
P 4.20
[143]:
M1 = 3
gamma1 = 1.4
gamma2 = 1.2
theta = 20 * deg
[144]:
shock1 = shockwave_solver("mu", M1, "theta", theta, gamma1)
shock1.show()
key quantity
---------------------
mu Mu 3.00000000
mnu Mnu 1.83721625
md Md 1.99413167
mnd Mnd 0.60839147
beta beta [deg] 37.76363415
theta theta [deg] 20.00000000
pr pd/pu 3.77125746
dr rhod/rhou 2.41806593
tr Td/Tu 1.55961730
tpr p0d/p0u 0.79601825
[145]:
beta1 = shock1["beta"]
beta1
[145]:
37.76363414837576 deg
[146]:
shock2 = shockwave_solver("mu", M1, "theta", theta, gamma2)
shock2.show()
key quantity
---------------------
mu Mu 3.00000000
mnu Mnu 1.74476259
md Md 2.25845491
mnd Mnd 0.60591105
beta beta [deg] 35.56227873
theta theta [deg] 20.00000000
pr pd/pu 3.23003255
dr rhod/rhou 2.56713102
tr Td/Tu 1.25822660
tpr p0d/p0u 0.81405494
[147]:
beta2 = shock2["beta"]
beta2
[147]:
35.56227872698842 deg
Wave angle is reduced when considering chemically reacting gases.
P 4.21
[148]:
p2_p1_a = shock1["pr"]
p2_p1_a
[148]:
np.float64(3.771257463082658)
[149]:
p2_p1_b = shock2["pr"]
p2_p1_b
[149]:
np.float64(3.2300325483469434)
Chemically reacting gases reduce the pressure change across the shockwave.
